8 PON Ports GPON OLT

PTF3708E-BCM

Product Description:

PTF3708E-BCM GPON OLT designed with Broadcom chipset, which provides 8 GPON ports, 4 GE copper RJ45 ethernet ports, 2 SFP(GE) and 2SFP+(10GE) optical uplink ports , it has high reliability, highly dense broadband access and robust switching and routing abilities, is a new generation of broadband and multiservice access OLT devices oriented towards the service-integrated network.

PTF3708E-BCM OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.

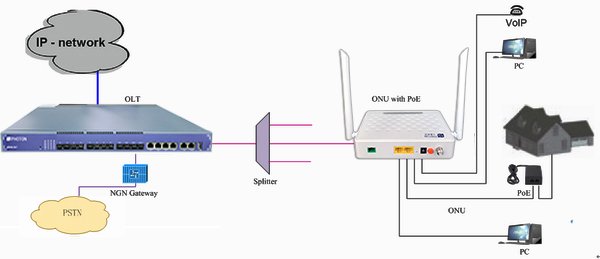

Independent 1U chassis equipment with 8 PON ports, each port supports up to 128 ONUs, the whole device supports up to 1024 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It is appropriate to be deployed in compact room environment. The OLTs can also be used for “Triple-Play”(data voip and IPTV) applications.

Features:

Ø1U 19 inch standard chassis GPON OLT with 8PON ports
ØCompliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements
ØFriendly EMS/Web/Telnet/CLI/SSH v1/v2 management
ØRemote online ONT configuration and management(WAN, WiFi, POTS, etc)
Ø16K Mac address
ØSupport IPv6,IPv4
ØARP proxy,2048 hardware Host Routes,2048 hardware Subnet Routes;
ØSupport MLD v1/v2 snooping(Multicast Listener Discovery snooping);
ØSupport 802.1X,Radius,Tacacs+;
ØSupport 4096 VLANs, port VLAN and protocol VLAN;
ØSupport VLAN tag/Un-tag ,VLAN transparent and QinQ transmission;
ØSupport port isolation;
ØSupport port rate limitation;
ØSupport 802.1D and 802.1W;
ØSupport static LACP,Dynamic LACP;
ØQoS based on port, VID, TOS and MAC address;
ØAccess control list;
ØIEEE802.x flow control;
ØPort stability statistic and monitoring;
ØSupport IGMP snooping, 256 IP Multicast Groups
ØDHCP server,DHCP relay,DHCP snooping,DHCP option82;
ØSupport data encryption, multi-cast, port VLAN, separation, RSTP, etc
ØSupport ONT auto-discovery, auto configuration/link detection/remote upgrade of software;
ØSupport power-off alarm function, easy for link problem detection;
ØSupport broadcasting storm resistance function;
ØSupport ACL and SNMP to configure data packet filter flexibly;
ØSpecialized design for system breakdown prevention to maintain stable system;
ØSupport RSTP,IGMP Proxy;
ØSupport Dynamic Bandwidth Allocation (DBA)
ØSupport remote software upgrade,download firmware to OLT from web/tftp/ftp

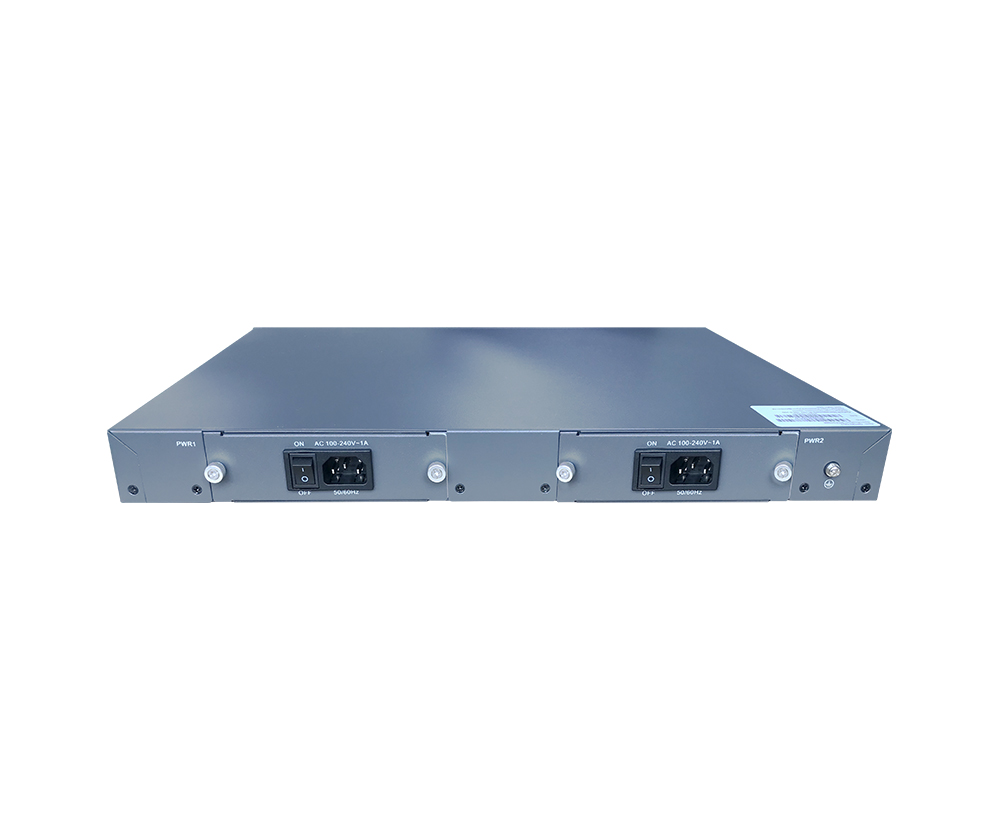

ØTwo power supply redundancy design

Technical parameters

Items	Unit	Specifications
PON standard.		GPON ITU-T G.984.x
PON interface		8*GPON SFP Ports (Class C+), Receiving sensitivity: ≤-30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3～+7dBmTransmission distance: 20KM. Max splitting ratio1:128
PON interface	Speed	Downstream 2.488G Upstream1.244G
Wavelength	nm	Tx1310, Rx 1490
Uplink	GE	4*copper Ethernet ports 10/100/1000M auto-negotiation
	SFP GE	2*SFP(GE)
	SFP 10GE	2* SFP+ (10GE)
USB		1*USB2.0(Type A)
Layer 3		Support static route, ARP proxy, hardware Host Routes, hardware Subnet Routes
Management Ports		110/100BASE-T out-band port, 1CONSOLE port
Management Mode		SNMP、Telnet、CLI、WEB、SSH v1/v2
Backplane	Gbps	128
MAC table	K	16
Operating condition	℃	Operating temp: -5 ~ +55
Storing condition	℃	Storing temp: -40 ~ +85
Humidity	%	5~90(non-condensing)
Power consumption	W	≤45
Dimension	mm	442mm×220mm×44mm（L×W×H）
Net weight	Kg	3.0Kg

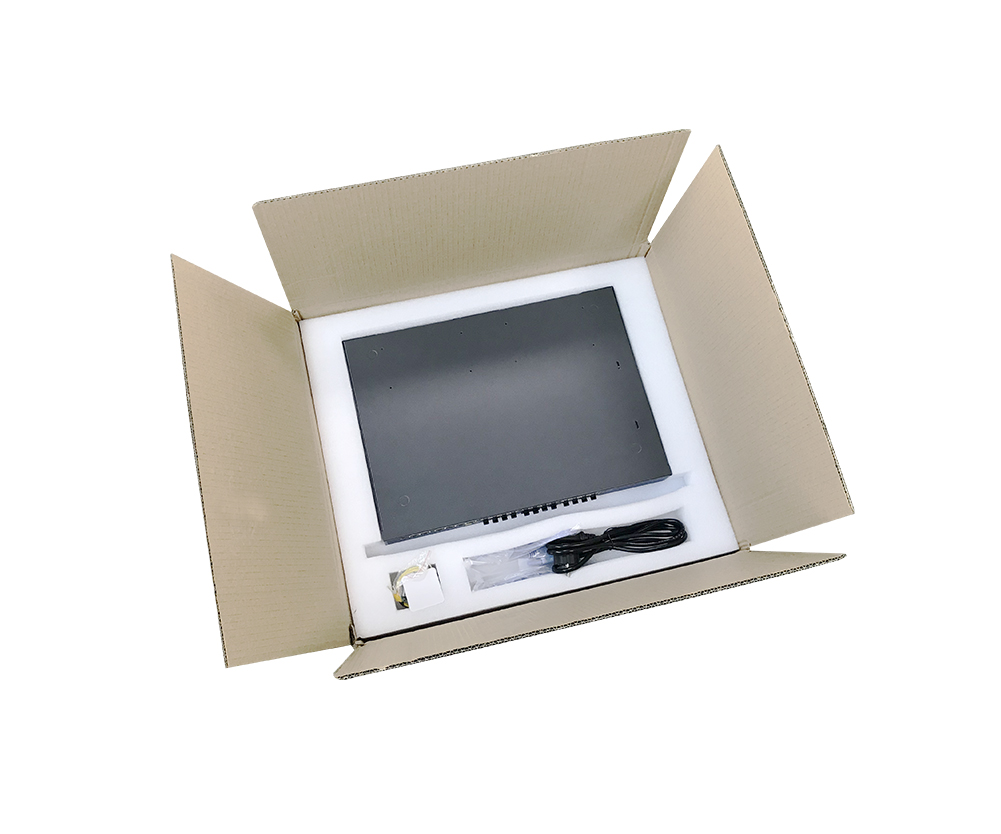

Shipping packaging

Description	Quantity	Weight	Carton Size
Shipping packaging	1pcs /ctn	6.94kg/ctn	575500115mm
	5pcs /ctn	34.95kg/ctn	597525645mm
