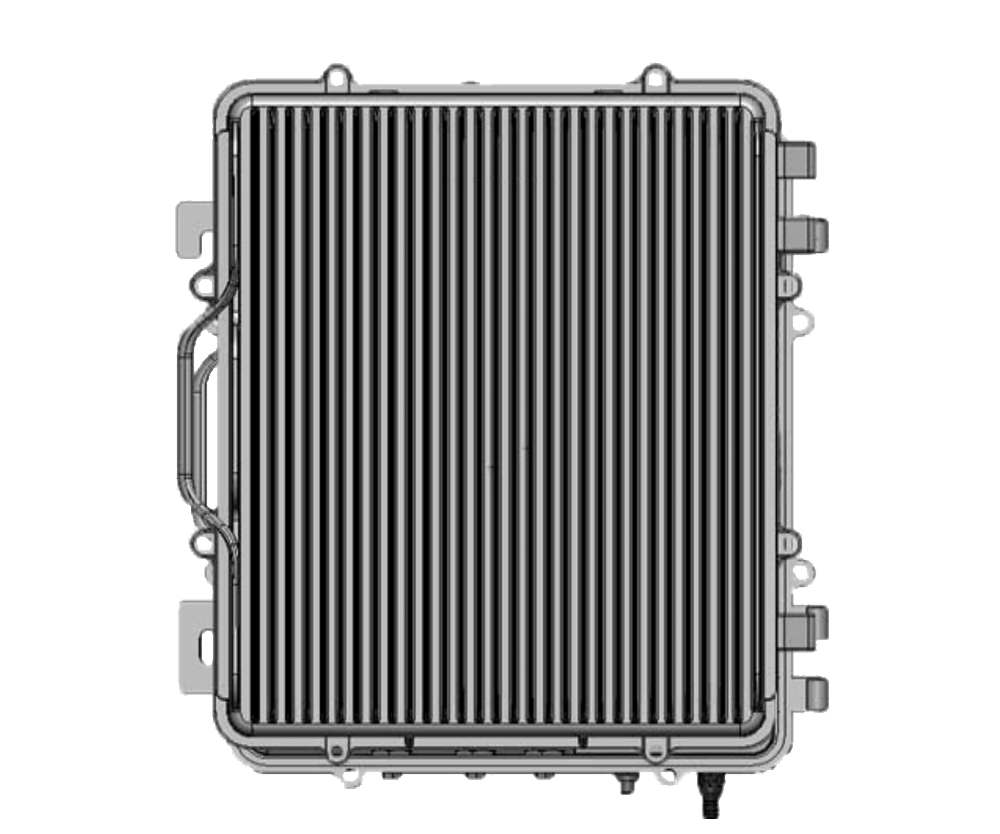

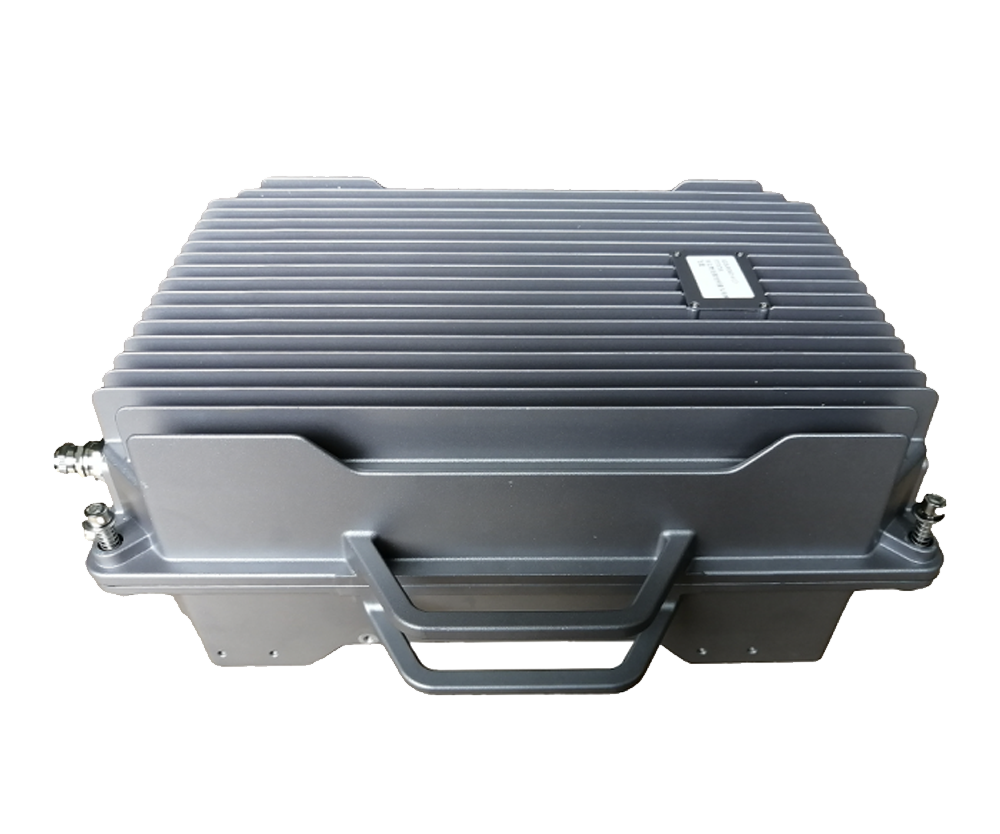

Outdoor 8 PON Ports GPON OLT
PTF3708OVirtual Headend（8 PON Ports OLTwith YEDFA）
PTF3708O is designedbased on a new concept“V-HUB”.It can install GPON or EPON OLT module, WDM module and YEDFA module, can provide multi-service access, such as data and CATV. It is the new, quick and low-cost construction model for FTTX solution in bidirectional network transformation.
Two power supplyandintegrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.
Outdoor waterproof, small size and modular design, easy to install, convenient, flexible, no needspecialheadendequipmentroom, easy to deploy high-performance broadband access network. For "triple play" applications.
Features:
ØXPON OLT SLOT，Support 1:128 split ratio for GPON；Support 1:64 split ratiofor EPONØSupport opened ONU management by CTC2.1/CTC3.0 standard
Technical parameters
Items
Unit
Specifications
Chassis
Slot
1* XPON OLT SLOT
2*Power Supply Module
1* EYDFA Module for 8port*19dBm outputs
1*Fiber Coiling Disc
PON standard.
EPON
IEEE802.3ah
GPON
ITU-T G.98X
10GEPON
IEEE802.3av
Upstream Port
SFP+ optical port*2 or GE photoelectric port*2
Management Port
Console serial port meet the requirement of CLI out-of-band management
FE port meet the requirement of GUI out-of-band management
10GE/GE meet the requirement of GUI in-band management
Split ratio
EPON port*8 max split ratio 1:64, Transmission distance: 20KM.
Or GPON port*8 max split ratio 1:128,Transmission distance: 20KM.
Wavelength
nm
Tx1310, Rx 1490
Backplane Bandwidth
bps
114Gbps
Slot Bandwidth
bps
22 / 20Gbps
Switch Capacity
bps
44Gbps
MAC Capacity
32K
VLAN
Basic VLAN
Support 4K concurrent VLAN
Support ACCESS and TRUNK port mode
Support VLAN priority (COS) remark
Flexible QINQ
Support flexible QINQ based on report matching type (MAC/IP/CVLAN/ETH-TYPE)
VLAN Conversion
Support N:1 conversion based on template binding
IGMP
Multicast Mode
Support SNOOPING, PROXY and CTC controllable multicast
Multicast Capacity
2K concurrent multicast groups
Layer 3
Support statics route, max 2K statics routes
Support L3 IP protocol, such as DHCP Server, DHCP Relay, DHCP Option, OSPF and RIP
L2 Switch
ACL
Provide illegal frame filtering and packet filtering based on source MAC, source IP, destination IP and port.
QOS
Three strategies for queue schedule: SP (Strict Priority), WRR (Weighted Round Robin) and mix mode (SP+WRR)
Link Aggregation
Max 4 link aggregation groups
Loop Detection
Support STP and RSTP
Efficient Configuration
Support ONU configuration migration, provide batch configuration ONU template, support VLAN pool at ONU port
Management
Support in-band and out-of-band management
Support CLI and SNMP network management
Support batch ONU remote upgrade
Redundant Backup
Chassis OLT support redundancy hot backup of power supply, main control, upstream and PON port
Link Monitor
Network management supports monitoring optical link index
Network management supports data flow statistics of all service ports
Support auto alarm when link index degrades
Operating condition
℃
Operating temp: -20 ~ +65
Storing condition
℃
Storing temp: -40 ~ +85
Humidity
%
5~90(non-condensing)
Power Supply
AC
DC: -40V~ -57V AC:175~264V
Power consumption
W
≤80
Dimension
mm
450mm*384mm*180mm（L×W×H）
Net weight
Kg
8Kg
(Upstream/PON)
