LTE CAT4 CPE
PTW4262
Product Description

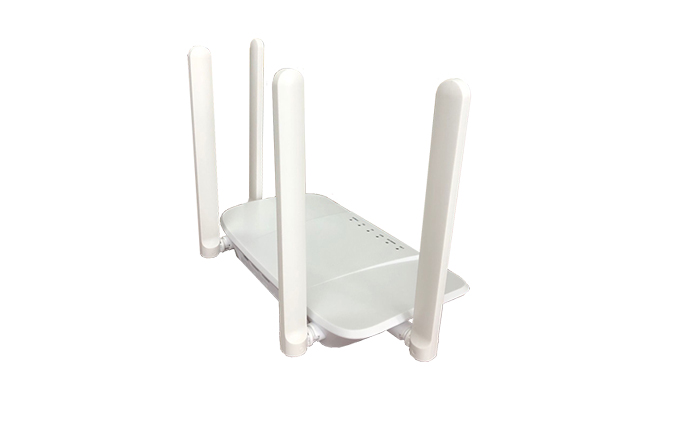

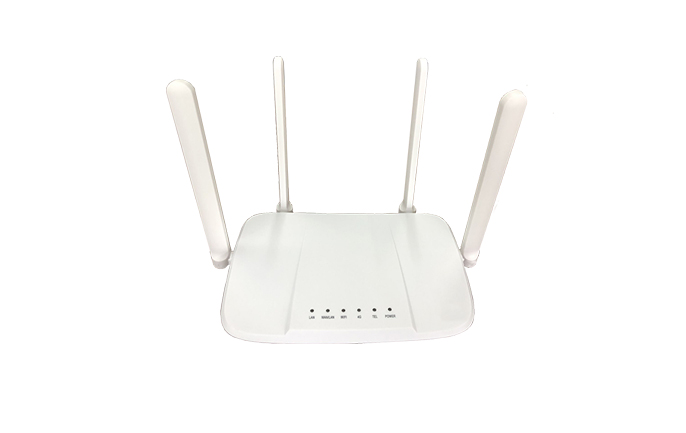

PTW4262 4G CPE is developed based on several worldwide proven chipset solutions, integrated with the high technologies in 4G CAT.4, WIFI Hotspot, two Ethernet ports(WAN/LAN) and Web-UI management. It supports both 4G CAT.4 and IEEE 802.11 b/g/n protocols, to equip the users enjoying the high speed internet surfing experience.
It can also be applied to a wide temperature environment, and high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees.
Features:
Ø 4G/3G (No 2G), Multi-mode, Multi-band, Global customizable
Ø LTE CAT4 Technology, 150Mbps Downlink robust speedrate
Ø WIFI，300Mbps robust downlink speedrate
Ø Wider coverage, up to 180Ms connection distance and 32 connected stations
Ø 4 External Antennas for LTE and WiFi, super powerful signal strengths, high speed WAN/LAN, RJ11 voice optional, support 5V as input power
Ø Customization for Web-UI Tool, TR069, Multi-Languages…etc
Ø Support Ethernet WAN/LAN and Web-UI management
Ø Support remote software upgrade
|
Working Frequency |
PTW4262CN: FDD-LTE B1/B3/B5/B8; TD-LTE B38/B39/B40/B41; WCDMA B1/B5/B8 |
|
PTW4262EA1: FDD-LTE B1/B3/B5/B7/B8/B20; TD-LTE B38/B41; WCDMA B1/B5/B8 |
|
|
PTW4262EA2: FDD-LTE B1/B3/B5/B7/B8/B20; TD-LTE B40; WCDMA B1/B5/B8 |
|
|
PTW4262SA1: FDD-LTE B2/B4/B5/B7,B28A/B, TDD-LTE B40; WCDMA B2/B5 |
|
|
PTW4262SA2: FDD-LTE B1/B3/B7/B8/B28A/B; TDD B40; WCDMA B1/B8 |
|
|
PTW4262SA3: FDD-LTE B2/B4/B5/B7/B28A/B,B66; TDD-LTE B40; WCDMA B2/B5 |
|
|
4G Data Speed Rate |
3GPP R9, CAT. 4; Downlink: 150 Mbps / Uplink: 50Mbps |
|
WIFI |
IEEE 802.11 b/g/n/, 2.4GHZ 2T2R WLAN; Up to 32 stations |
|
WAN/LAN |
RJ45 I/F *1 or *2 WAN/LAN: 10/100Mbps |
|
Antenna |
External antenna, MIMO: 2 * 2 LTE Antennas, 2*2 WIFI Antennas |
|
RJ11 |
*1 |
|
SIM |
Standard SIM slot 2FF, 1.8V/3V |
|
LED |
LED indicators for different status |
|
Buttons |
PIN hole – Long press to reset the “Factory Settings”; Short Press for “WPS” |
|
Power |
12V/1A, DC Jack ; Support 5V external power supply (5V 2A, Recommended) |
|
USB I/F |
USB Type C |
|
Languages |
Chinese, English, WEBUI defined Multi-languages |
|
Intelligent WEBUI |
SMS, APN Mgmt, WIFI Mgmt, Router Mgmt, Safety Mgmt |
|
Voice |
VoLTE, CSFB |
|
FOTA |
Yes |
|
Protocols |
IPV4/IPV6, IP and MAC Address Binding, Traffic Control (IP QoS) Access Control, Local Management Remote Management (TR069) UPnP, DMZ, DDNS Dynamic IP/Static IP, HTTP, VPN, IP Sec, Firewall |
|
Weight |
0.275kg |
|
Size |
200mm*130mm*33mm(L×W×H) |
